Access to Vetted Experts: We connect you directly with experienced mixing and agitation engineers across Malaysia.
We provide purpose-built mixing systems designed to solve mixing, suspension, dispersion, and heat transfer challenges.

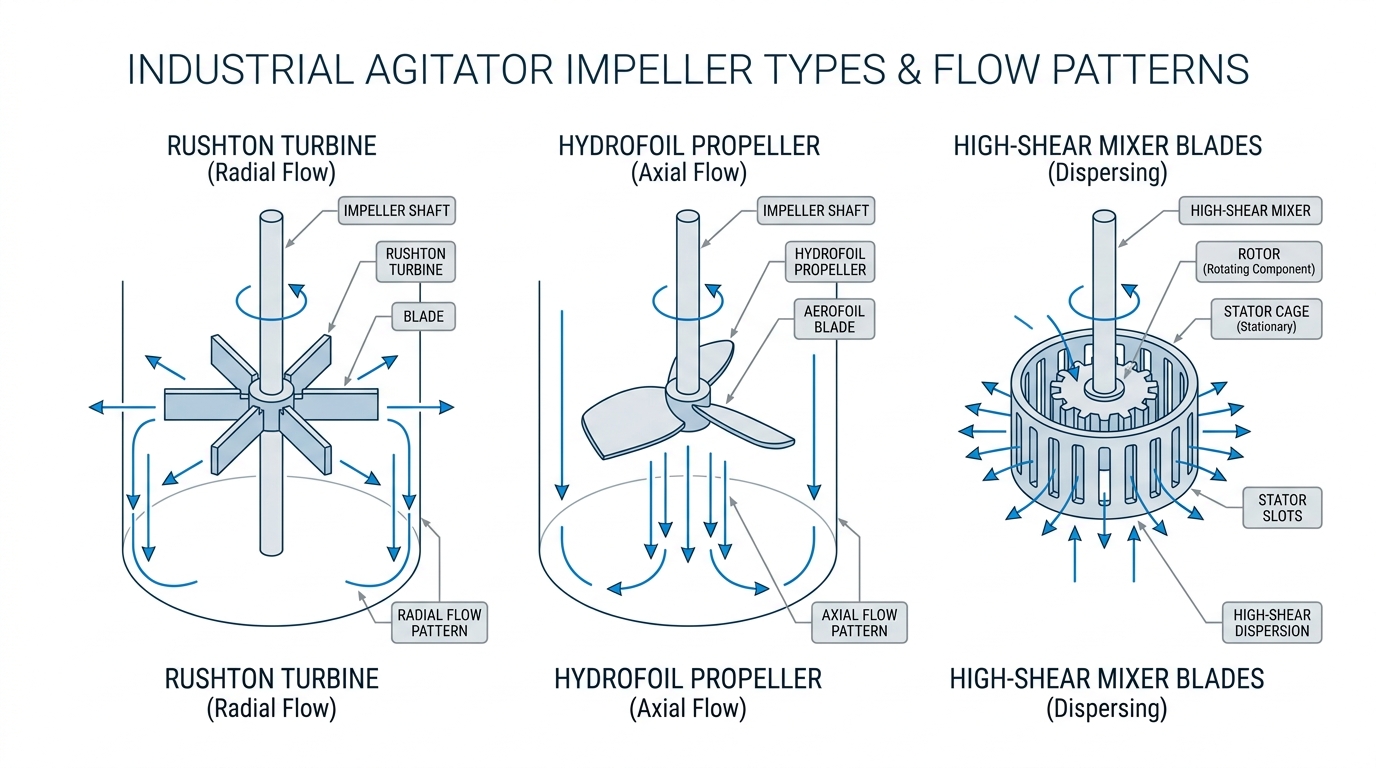

1. High-Efficiency Hydrofoil Impellers (HE-235 / HE-335)
– Application: Low-viscosity blending, solid suspension, and water treatment.
– Benefit: Delivers high axial flow with minimal power consumption and shear stress.
2. Mixflow Series (T345 / T445)
– Application: Medium-viscosity liquid-liquid mixing and batch reactions.
– Benefit: Balanced axial and radial flow pattern for uniform blending.
3. Radial Flow & Rushton Turbines (T290 / T490 / Rushton R5)
– Application: Gas dispersion, mass transfer, and high-shear chemical reactions.
– Benefit: Maximum power input for gas-liquid absorption and emulsification.
4. High Viscosity & Non-Newtonian Solutions (Visco MIG-235)
– Application: POME, sludge, polymers, pastes, and viscous food ingredients.
– Benefit: Close-clearance agitation preventing stagnation along tank walls.

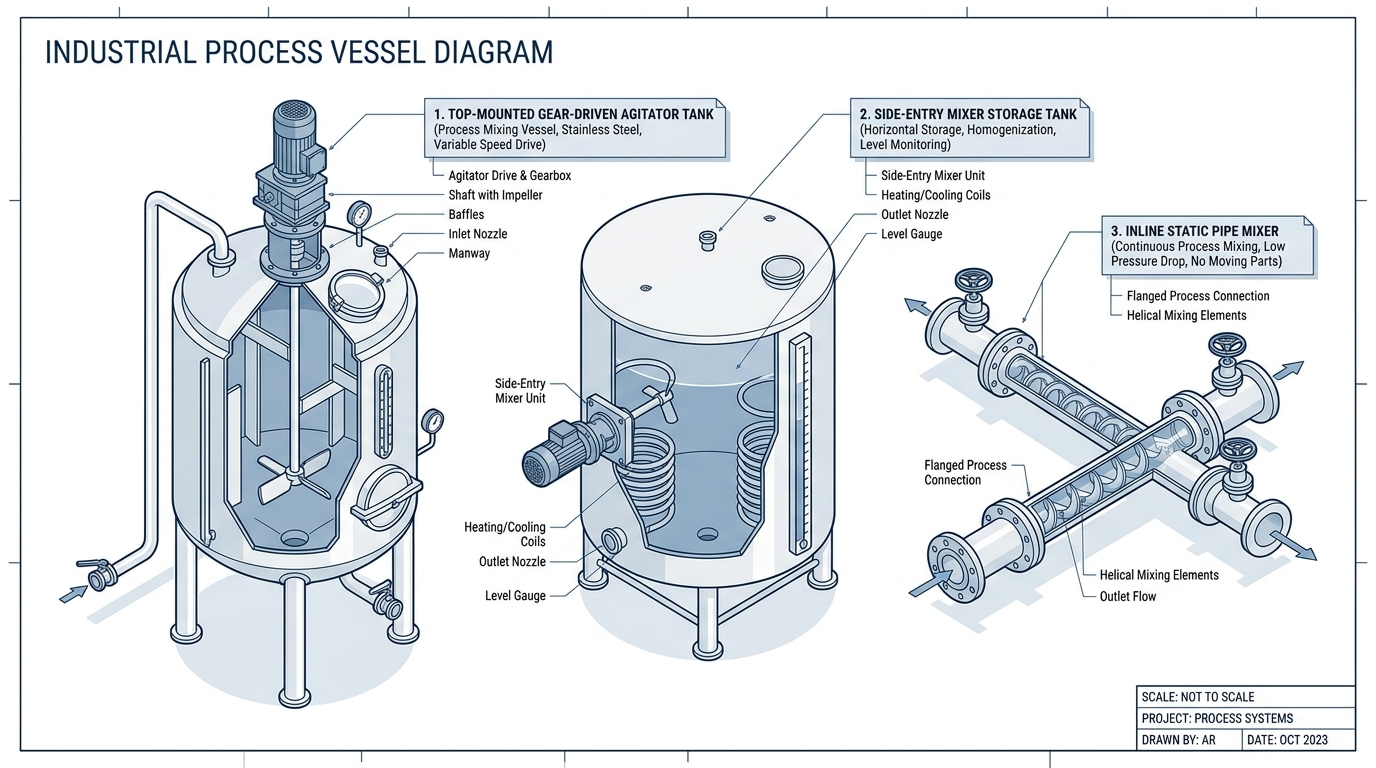

Top-Mounted Agitators: Heavy-duty gear-driven units with mechanical seals or gland packing for pressurized or open tanks.
– Side-Entry Mixers: Compact, high-flow mixing ideal for large storage tanks, bio-digesters, and oil storage.
– Inline Static Mixers: Continuous motionless mixing for chemical dosing, water treatment, and pipeline blending.
– Mechanical & Pneumatic Agitator Lifters: Mobile and height-adjustable mixing rigs for 200L drums and IBC totes.

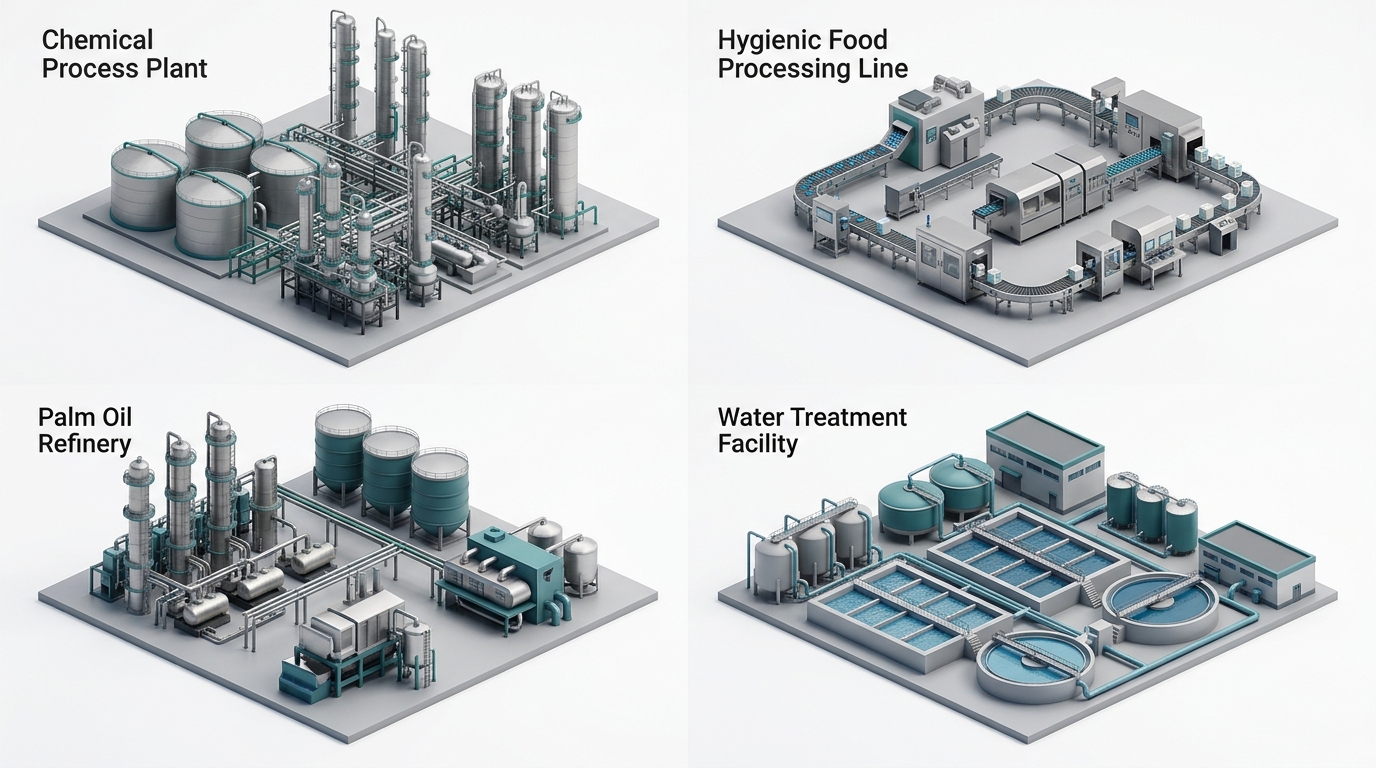

– Chemical & Petrochemical: Solvents, acids, polymers, and resin reactors.
– Food & Beverage (Hygienic/Sanitary): CIP-compliant stainless steel mixing for sauces, dairy, and liquid sugars.
– Oleochemical & Palm Oil Processing: Sludge tanks, crystallizers, and chemical dosing.
– Water & Wastewater Treatment: Flocculation, coagulation, and sludge homogenization.
High-viscosity fluids require high-solids axial flow or close-clearance wall agitation like the Visco MIG-235 or Mixflow T345/T445 profiles. These designs prevent stagnation along the tank walls and maintain uniform fluid movement without overloading the motor drive.
Yes. For aggressive chemicals, food-grade sanitary processes, or pressurized vessels, units can be fitted with single or double mechanical seals, gas-purged dry seals, and wetted parts lined with PTFE, PVDF, rubber, or polished SS316L.
Selection depends on fluid viscosity, tank volume, and process intent:
– Top-Mounted Agitators: Best for deep tanks, reaction vessels, high-viscosity fluids, and applications requiring precise axial/radial mixing
– Side-Entry Mixers: Ideal for large storage tanks, bio-digesters, and crude oil/sludge tanks where top mounting is structurally impractical.
– Inline Static Mixers: Preferred for continuous pipe-line chemical injection, neutralizing streams, and motionless fluid blending without moving parts.
To provide an accurate sizing and torque calculation, our sales engineers need:
1. Fluid properties (specific gravity, viscosity, working temperature, corrosive/abrasive nature).
2. Vessel dimensions (diameter, straight height, dish/flat bottom profile, liquid depth).
3. Process requirement (solid suspension, liquid-liquid blending, gas dispersion, or heat transfer rate).
